A successful CC-Link installation is the foundation of your digital workshop. This guide covers the tools you need, the physical requirements for a high-quality setup, and why these steps are critical to your dealership’s success.
Pre-Installation Essentials
Before beginning, ensure you have the correct hardware for the specific vehicle brand and model:

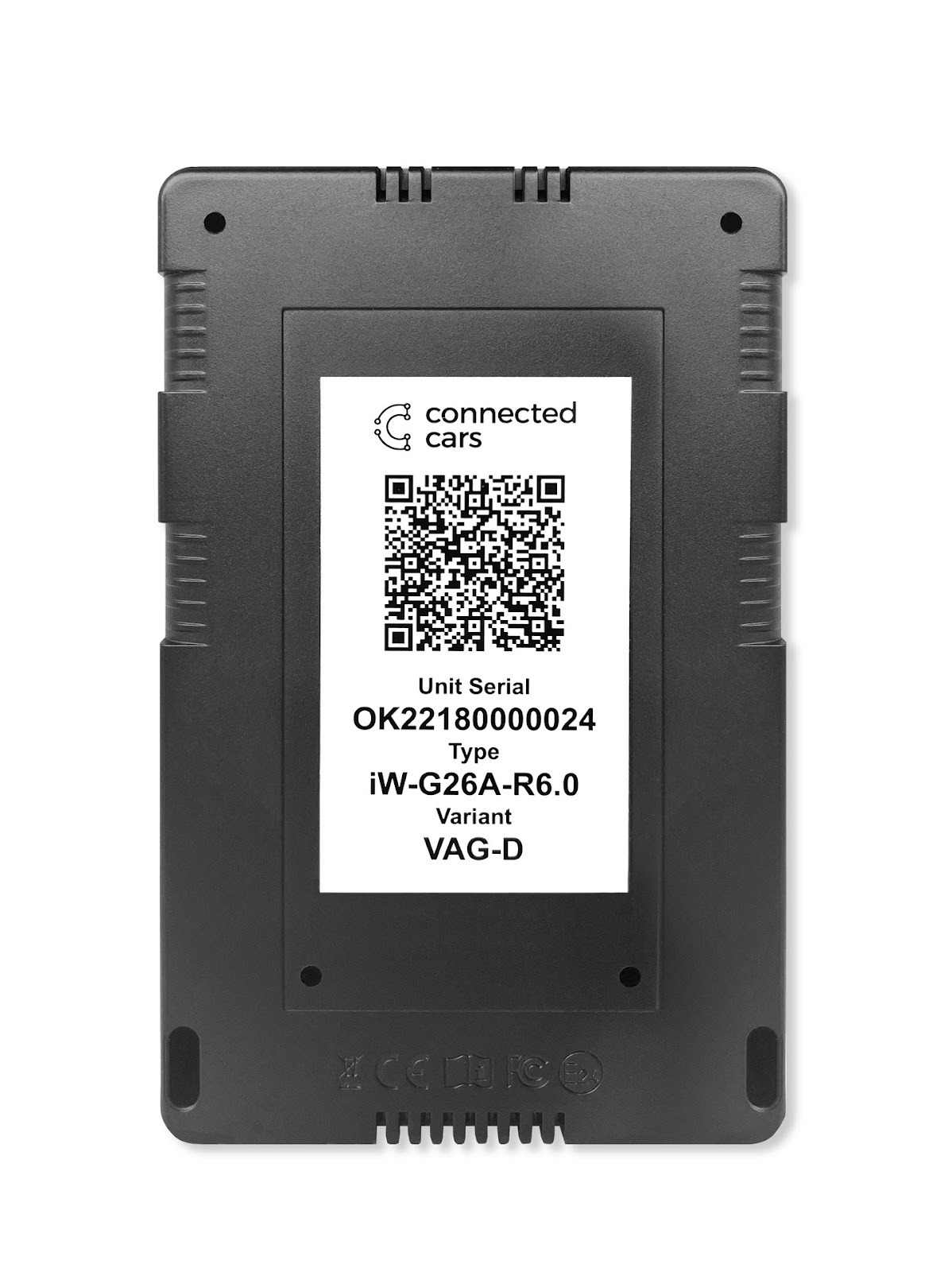

The CC-Link Unit

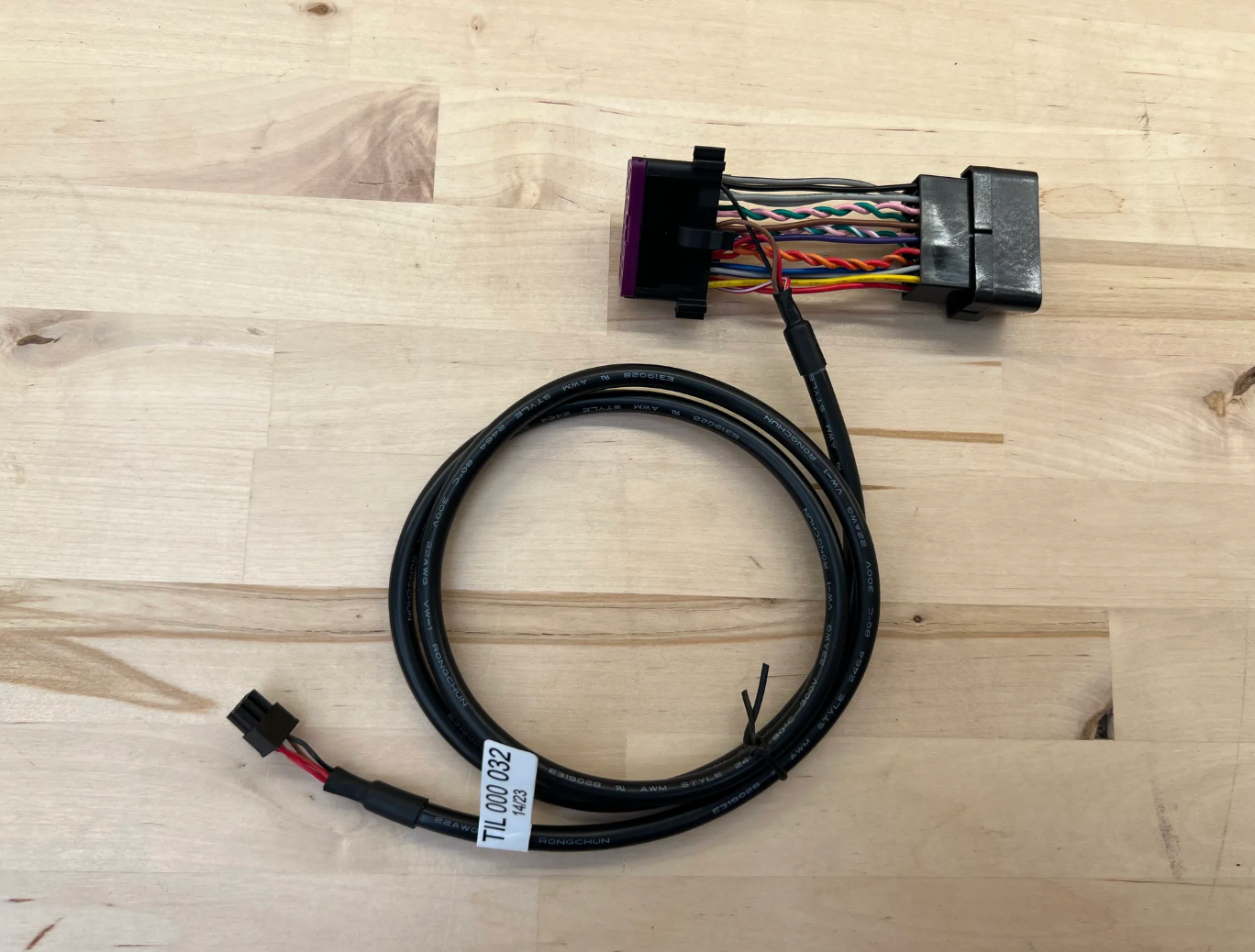

Specific CC Adapter Cable: All compatible cables begin with the prefix TIL 000.

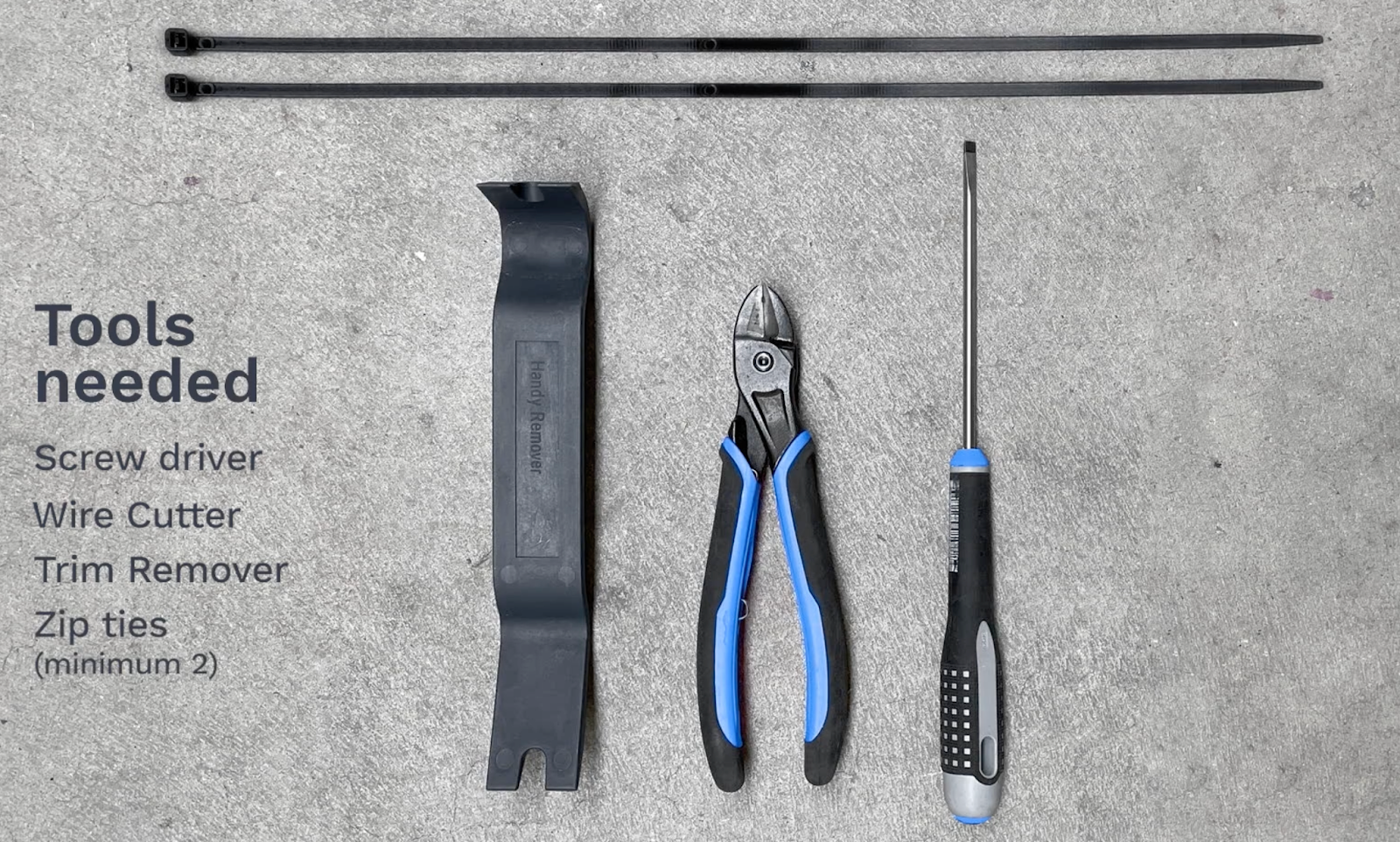

Required Tools: * Screwdriver & Trim Remover
Wire Cutters
Minimum of 2 Cable Ties

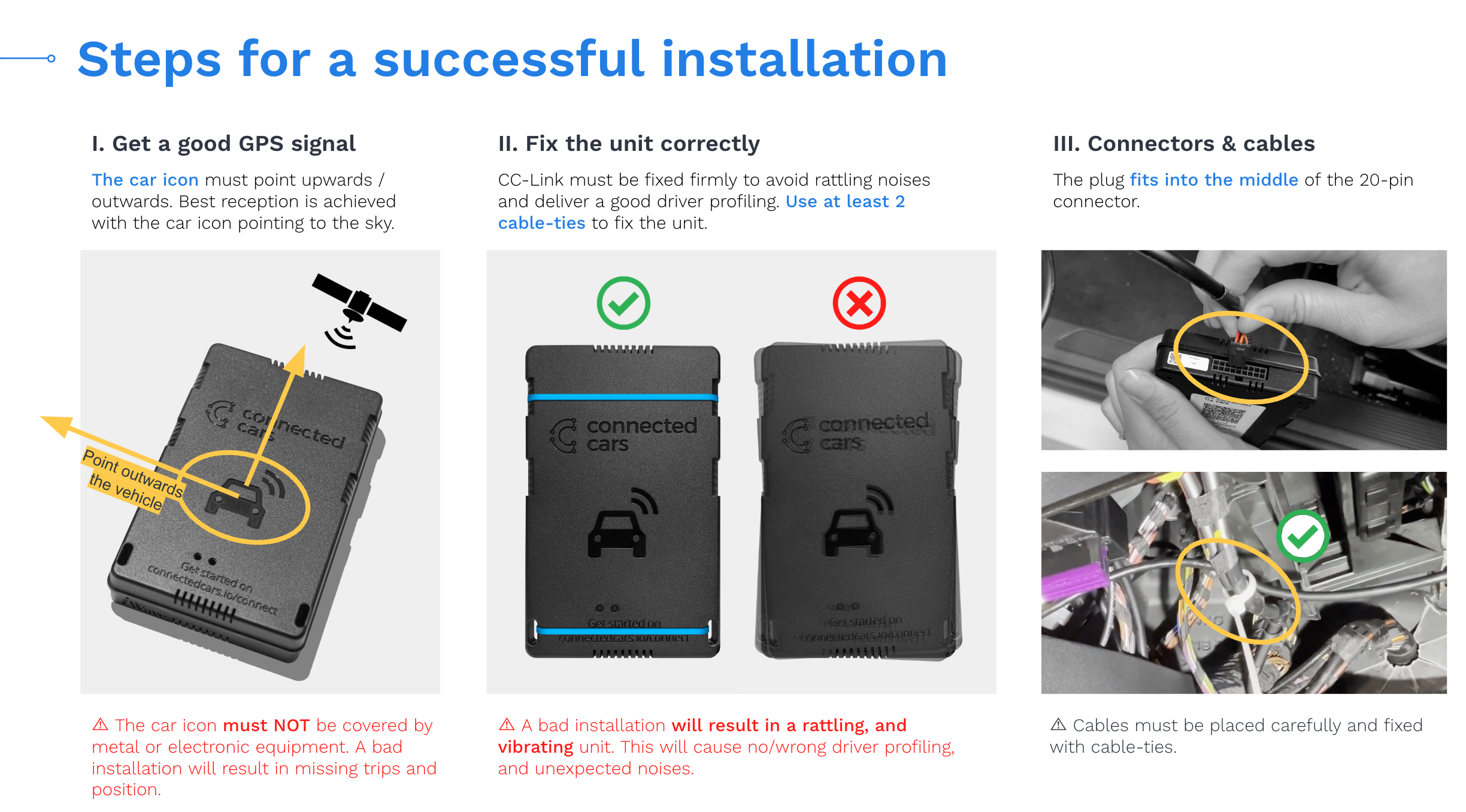

Installation Best Practices
Following these three "Golden Rules" ensures the device communicates accurately with the ConnectedWorkshop platform.
1. Optimising the GPS & Cellular Signal

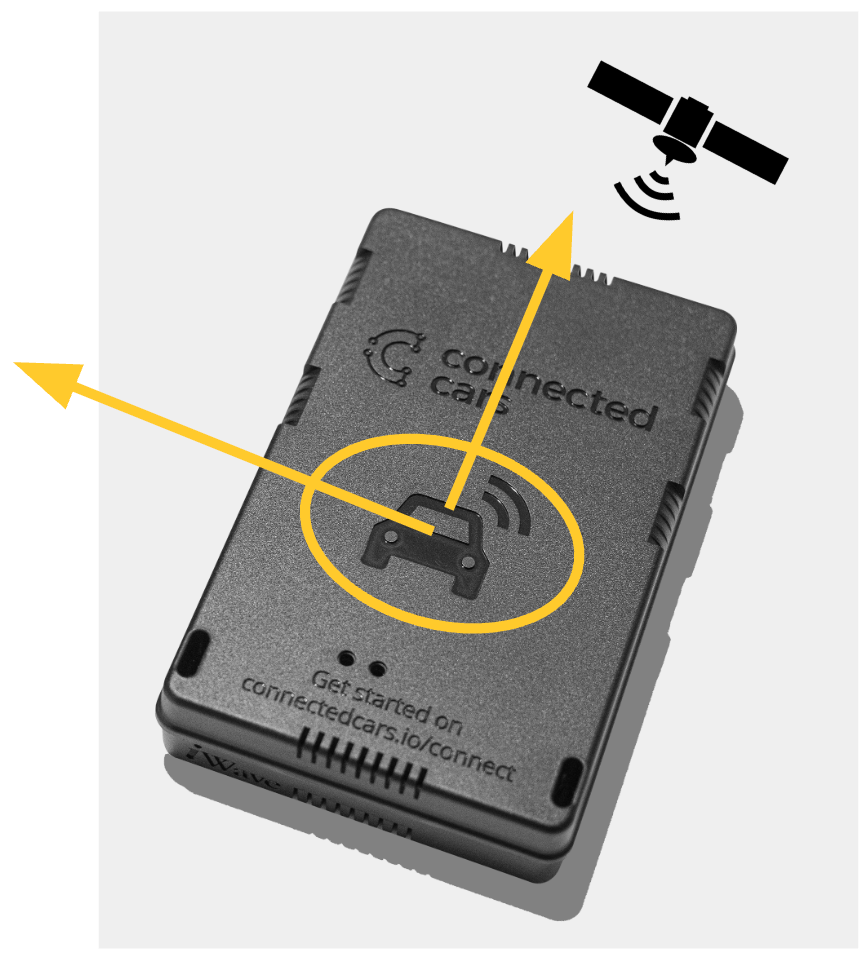

The Rule: The car icon on the device must face upwards or outwards.
Why it matters: Covering the icon with metal or placing it near heavy electronics will lead to missing trip data and inaccurate vehicle positioning.
2. Securing the Unit (Driver Profiling)

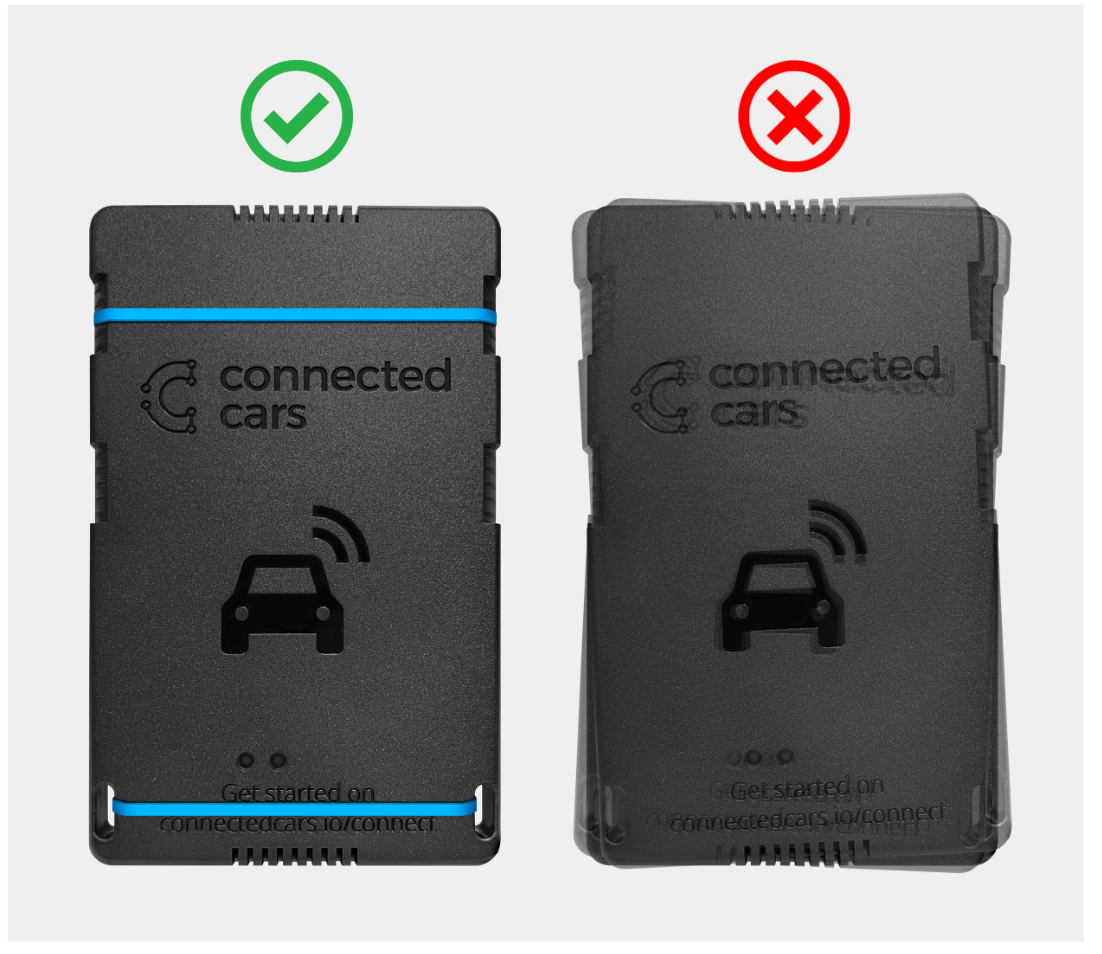

The Rule: The CC-Link must be fixed firmly using at least two cable ties.
Why it matters: A loose unit will rattle and move. This vibration creates "noise" in the data, resulting in inaccurate driver profiling and false "harsh driving" alerts:
3. Wiring and Safety

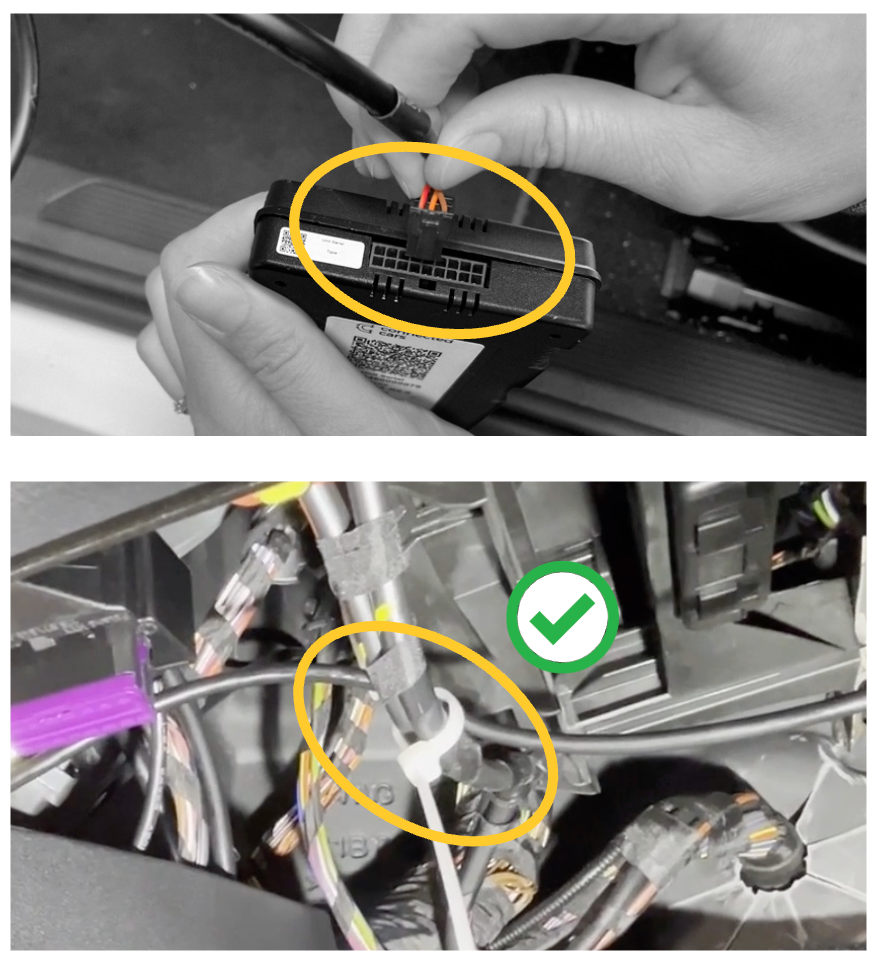

The Rule: Insert the plug into the centre of the 20-pin connector.
Why it matters: You must secure all cables away from moving parts, such as the steering column or pedals, to ensure driver safety and prevent cable wear:
Why Precision Matters (Turning Data into Profit)
Correct installation isn't just a technical requirement—it drives your workshop's growth:
Smarter Resource Allocation: Accurate diagnostics allow you to prioritise urgent appointments, reducing customer wait times and maximising your workshop capacity.
Revenue Opportunities: Reliable data allows the system to predict service needs (like oil changes or brake wear), creating honest upselling opportunities.
The "Guardian Angel" Effect: Providing proactive, accurate health alerts builds immense trust. If the data is wrong because of a poor installation, that trust is lost.
🚦 Final Verification

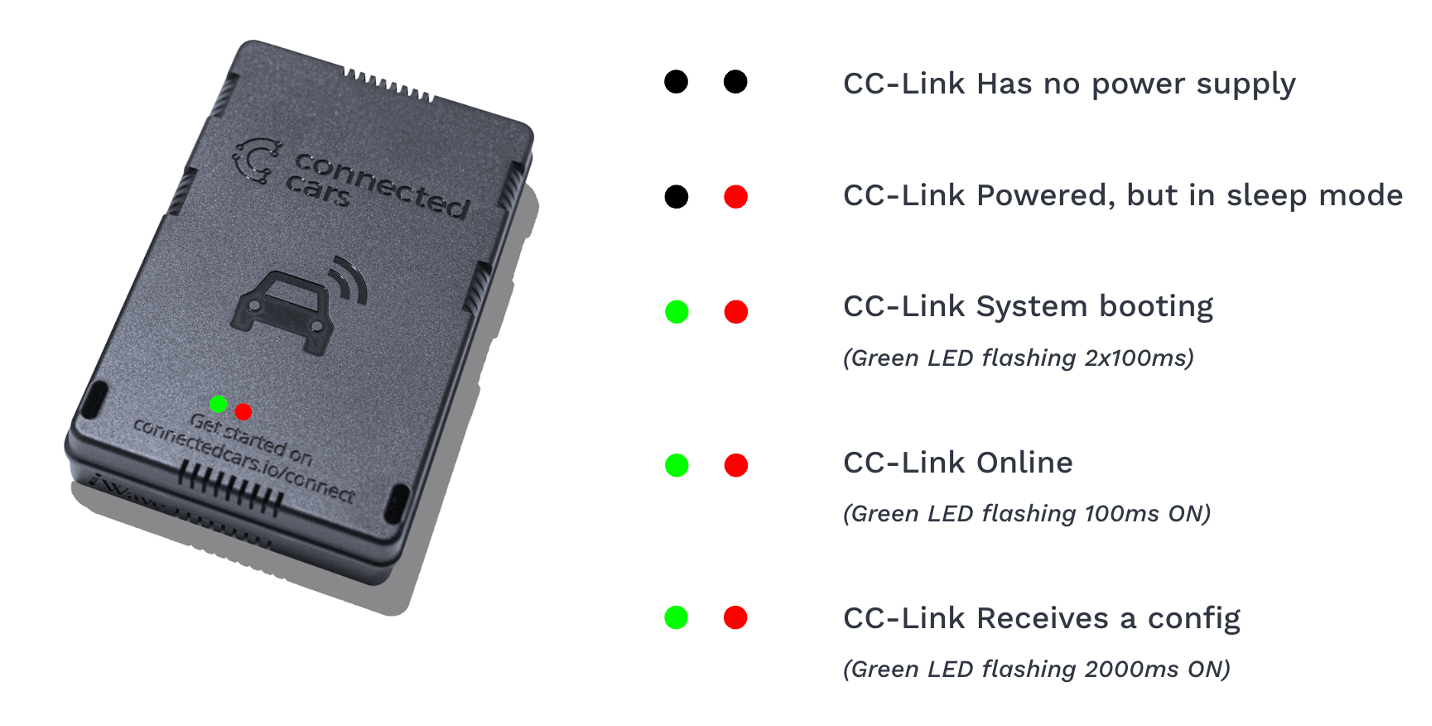

Once the unit is in place, check the LED indicators to confirm the device is communicating with the network:
Next Step: Open the Installation Assistant in the app to finalise the digital registration.
REMEMBER!
Proper installation is the most critical factor for success. Always follow the specific vehicle manual closely to avoid future connectivity issues.
